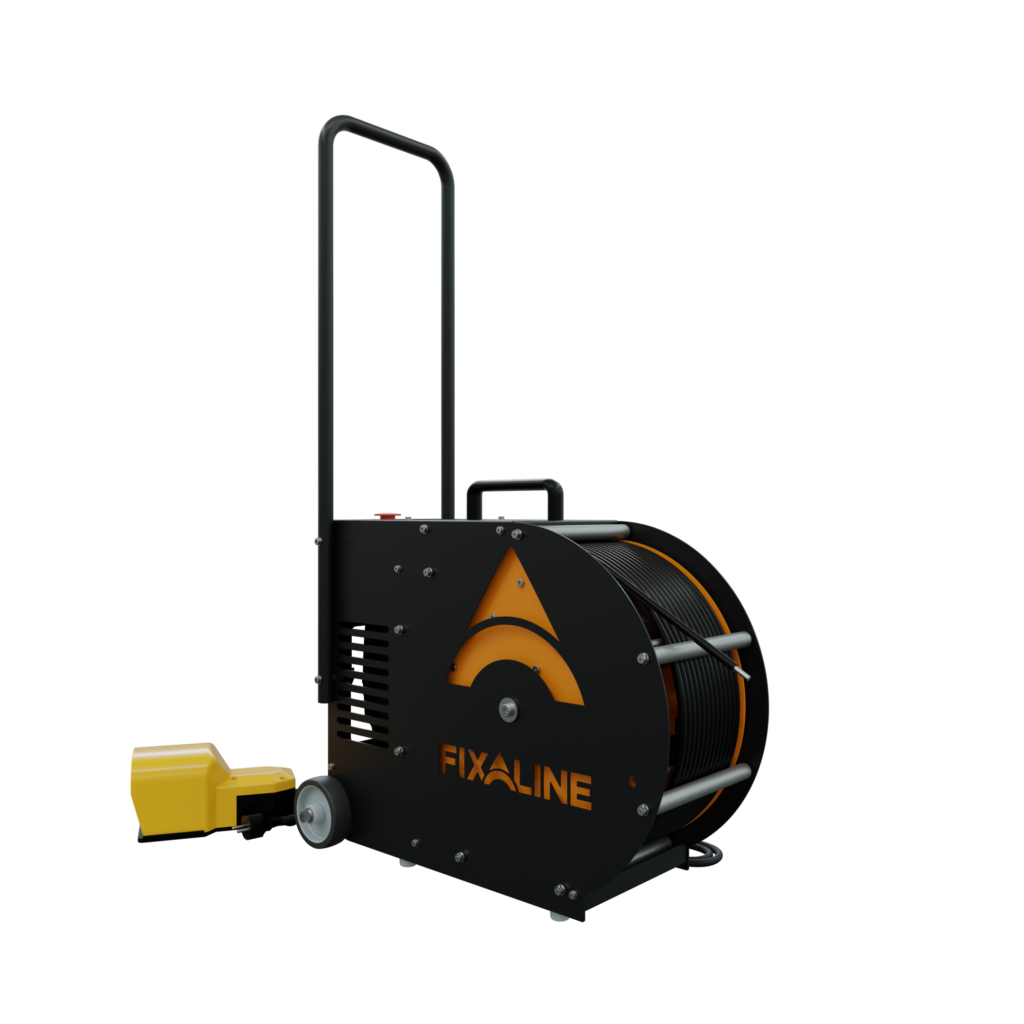

FIXER X6

FIXER X6 is a compact high-speed drain cleaning machine. With its integrated wheels and comfortable handle, its easy to move around with even in the tightest of spaces.

Specification

Size (cm / inches)

53 x 27 x 73 cm / 20.87 x 10.63 x 28.74 in
Weight (kg / lb)

Without shaft 25 kg / 55.1 lb
With shaft 32 kg / 70,5 lb
Shaft Ø (mm / inches)

Ø8 / 0.31 Flexible Shaft with Outer Casing
Shaft Length (m / feet)

19,5 / 64
Rotating max. speed (rpm)

2250
Voltage and power rating (V/kW)

240 V / 0.75 kW

Input Power

Electric, 1-phase, Input 220-240VAC / 50-60Hz / 10A
IP Class

54
Diameter (mm / inches)

DN50-100 / 1.18-4
Other technical information

Adjustable speed control, Direction Switch, Foot Pedal (OPC), Emergency Stop, Electronic Safety Switch, Puncture proof wheels, Robust steel frame, Drum lock.

Size cm / inches

108 × 34 × 62 cm / 42.5 × 13.4 × 24.4 in
Weight kg / lb

Without shaft 26 kg / 57.3 lb
With shaft 30.5 kg / 67.2 lb
Shaft Ø mm / inches

Ø6 / 1/4" flexible shaft with outer casing
Shaft Length m / feet

20 m / 65.6 ft
Rotating max. speed rpm

Adjustable speed, max. 2250 rpm.
Voltage & power rating V / kW

240 V / 0.75 kW (available in 120 V)
Input Power

Electric, 1-phase, Input 110-1200 VAC / 50‑60 Hz / 17 A
IP Class

54
Diameter mm / inches

DN20-70 / 3/4”-3”
Other

Adjustable speed control, direction switch, foot pedal (OPC), emergency stop, electronic safety switch, PU foam wheels, robust metal frame.
