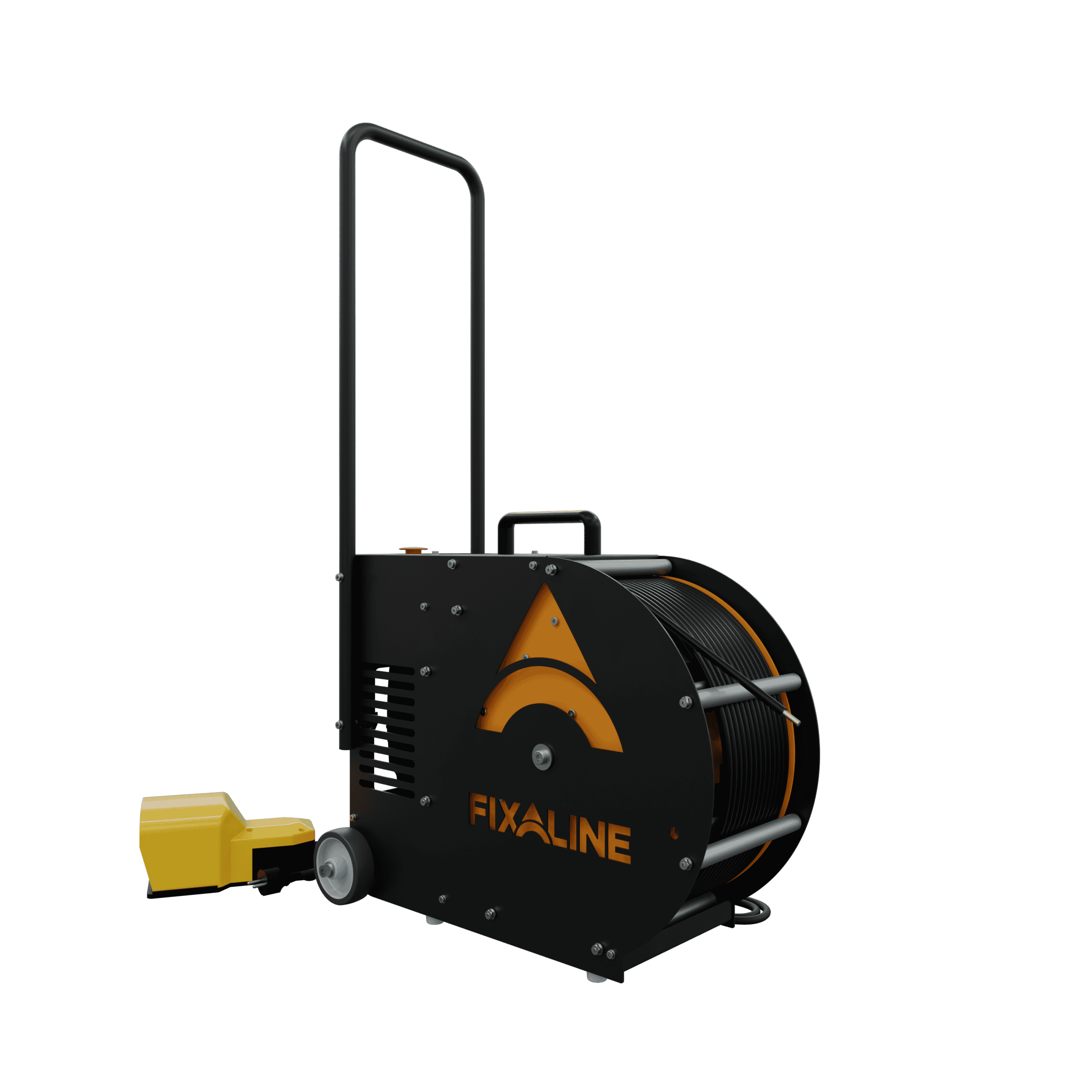

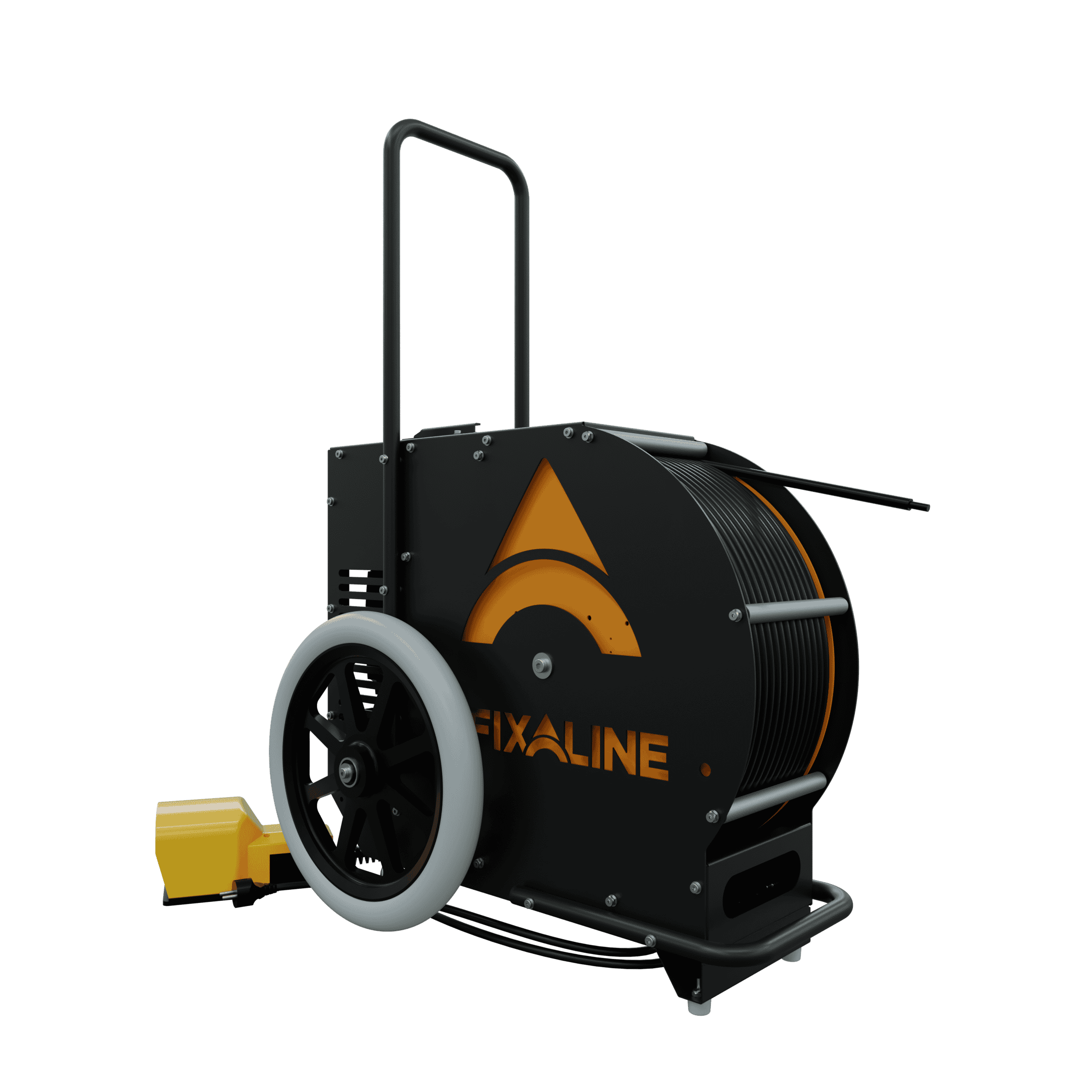

FIXER Combi

FIXER Combi is a High speed powered drain cleaning machine, that can accommodate both Ø10 mm / 0.39 in and Ø12 mm / 0.47 in shafts.

Buy Now

Specification

  • Size (cm / inches)

    122 x 45 x 95 cm / 48.03 x 17.72 x 37.40 in

  • Weight (kg / lb)

    Without shaft 56.8 kg / 125.22 lb
    With Ø10 / 0.39 shaft 74.5 kg / 164.24 lb
    With Ø12 / 0.47 shaft 78 kg / 172 lb

  • Shaft Ø (mm / inches)

    Ø10 / 0.39 Flexible Shaft with Outer Casing
    Ø12 / 0.47 Flexible Shaft with Outer Casing

  • Shaft Length (m / feet)

    With Ø10 / 0.39 shaft 31 / 101.7
    With Ø12 / 0.47 shaft 25.5 / 83.66

  • Rotating max. speed (rpm)

    2250

  • Voltage and power rating (V/kW)

    240 V / 1.5 kW
    120 V / 1.5 kW

  • Input Power

    Electric, 1-phase Input 220-240VAC / 50-60 Hz / 16 A
    Electric, 1-phase Input 110-120VAC / 50-60 Hz / 23 A

  • IP Class

    54

  • Diameter (mm / inches)

    DN50-200 / 2-8 (With Ø10 / 0.39 shaft)
    DN100-250 / 4-10 (With Ø12 / 0.47 shaft)

  • Other technical information

    Adjustable speed control, Direction Switch, Foot Pedal (OPC), Emergency Stop, Electronic Safety Switch, Puncture proof Wheels, Robust steel frame, Drum lock.

  • Size cm / inches

    122 × 45 × 95 cm / 48.03 × 17.72 × 37.40 in

  • Weight kg / lb

    Without shaft 56,8 kg / 125,22 lb
    With Ø10 / 0.39 shaft 74,5 kg / 164,24 lb
    With Ø12 / 0.47 shaft 78 kg / 172 lb

  • Shaft Ø mm / inches

    Ø10 / 0.39 Flexible Shaft with Outer Casing
    Ø12 / 0.47 Flexible Shaft with Outer Casing

  • Shaft Length m / feet

    With Ø10 / 0.39 shaft 31 / 101.7
    With Ø12 / 0.47 shaft 25,5 / 83,66

  • Rotating max. speed rpm

    2250

  • Voltage & power rating V / kW

    240 V / 1.5 kW
    120 V / 1.5 kW

  • Input Power

    Electric, 1-phase, 220-240 VAC / 50-60 Hz / 16 A
    Electric, 1-phase, 110-120 VAC / 50-60 Hz / 23 A

  • IP Class

    54

  • Diameter mm / inches

    DN70‑250 / 4‑10

  • Other

    Adjustable speed control, Direction Switch, Foot Pedal (OPC), Emergency Stop, Electronic Safety Switch, Puncture proof wheels, Robust steel frame, Drum lock.

FIXER in action

Easy to move thanks to the wheels.

Tool attachment point
at the end of the shaft.

Tools

Various tools for FIXER series products

Improve the performance and efficiency of your work with tools that can be connected to FIXER.

Find out more

Accessories

Find out more about Fixaline's accessories

Through us you can get all the accessories for daily work. Find out more and order directly from our online store.

Find out more
